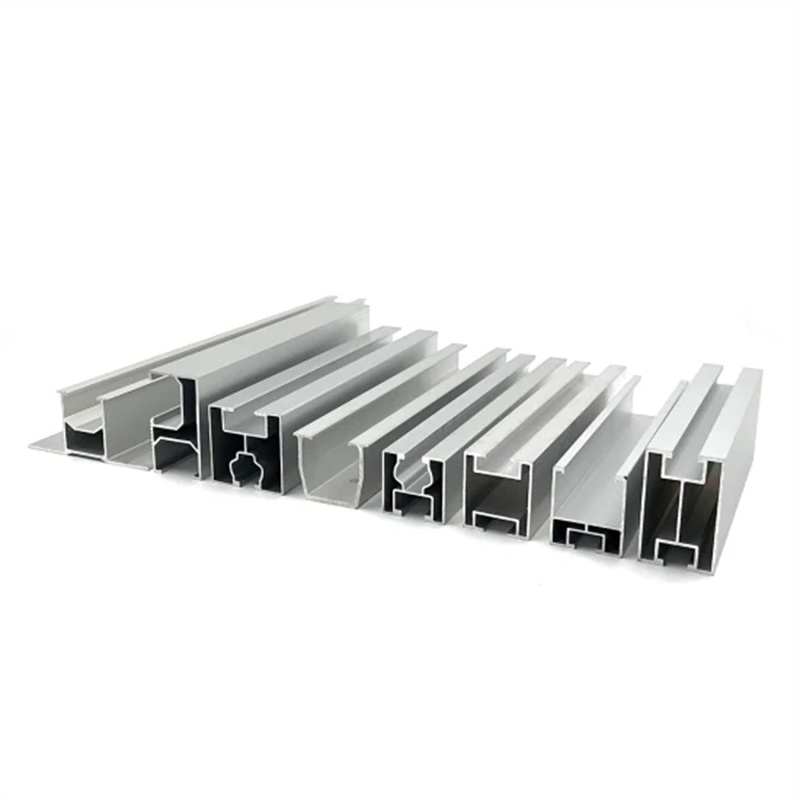

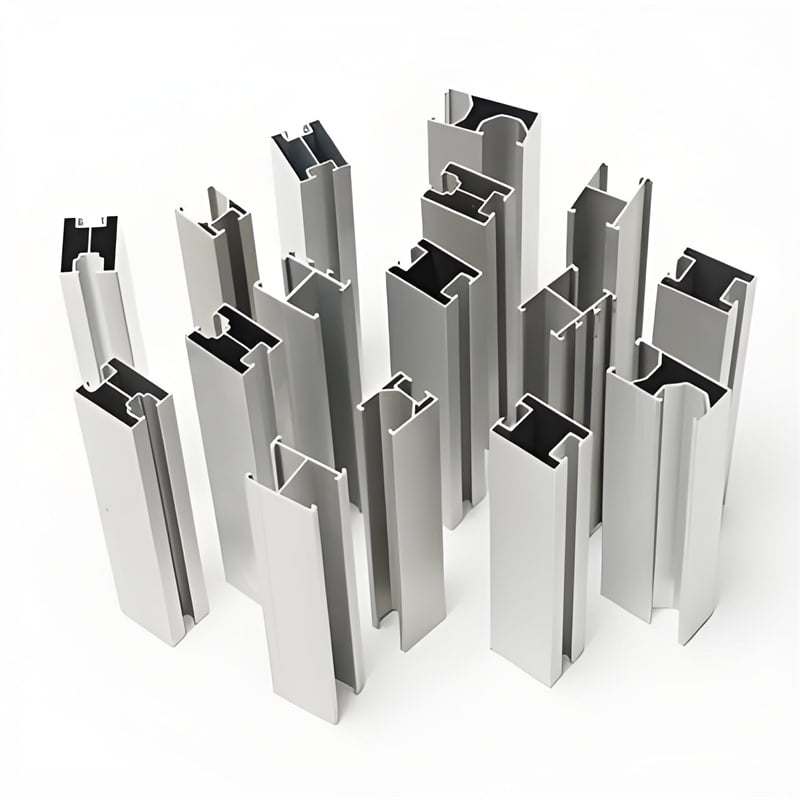

Wholesale Aluminum Solar Panel Mounting System Profile Solar Rail Aluminum Rail for Solar Panel Installation

Aluminum alloy material, corrosion-resistant, lightweight and high hardness

Easy to install

The core material of the photovoltaic aluminum alloy guide rail bracket is 6005-T5 aluminum alloy, which features high strength and high toughness, with tensile strength ≥240MPa and yield strength ≥186MPa, making it suitable for long-term outdoor load-bearing. Excellent corrosion resistance, suitable for complex environments such as humidity and salt spray; Lightweight design reduces the weight by approximately 30% compared to steel, lowering the difficulty of transportation and installation. Surface treatment: Anodizing to form a dense oxide film (with a thickness of up to 15-25μm), enhancing wear resistance by more than 300%. Enhanced UV resistance, effectively resisting outdoor aging and extending service life to over 20 years. The surface can be customized in colors (such as silver white, black, etc.) to meet the requirements of architectural aesthetics. High strength and stability, wind pressure resistance: Can withstand typhoons of level 12 (wind speed ≥38m/s), suitable for coastal and windy areas; Snow load resistance capacity: Maximum load-bearing capacity ≥50kg/m² (equivalent snow thickness 0.5m); Salt spray resistance performance: Passed the 1000-hour neutral salt spray test (ASTM B117), with no red rust or peeling; Uv resistance: The surface oxide film effectively blocks ultraviolet rays, preventing material aging. Modular design: Standardized interfaces (such as snap fasteners and bolt holes), supporting quick assembly and adjustment; Multi-scenario adaptation: Roof installation: Compatible with various roof structures such as flat roofs and sloping roofs, fixed to the roof through a bracket base. Ground installation: Compatible with foundation piles or concrete foundations, adaptable to complex terrains such as sandy and hard ground. System compatibility: Supports the installation of mainstream photovoltaic modules (such as monocrystalline silicon and polycrystalline silicon panels), and is compatible with 1500V high-voltage systems. Reserve cable threading holes to facilitate connection with inverters, combiner boxes and other equipment; Length: 1m, 2m, 3m, 4m (customizable to 6m, if continuous installation on the roof is required); The width of the guide rail is adapted to different component sizes, and the height of the guide rail is selected according to the thickness of the component. Operating temperature: -40℃ to +80℃, suitable for extreme climates; Application scenarios: Rooftop photovoltaic system: Suitable for industrial and commercial factory buildings and residential rooftops, it saves space and is easy to install. Ground-mounted photovoltaic power stations: Large-scale centralized power stations, supporting continuous laying of long guide rails to enhance component density; Special environments: In highly corrosive areas such as coastal regions and around chemical plants, the anodic oxide layer is relied upon to withstand harsh conditions. This 6005-T5 aluminum alloy guide rail bracket, with its high-strength material, anodizing anti-corrosion process and modular design, can provide stable support and long-term reliability in both rooftop and ground-mounted photovoltaic systems. Its diverse specifications and installation compatibility can meet the diverse needs from households to large-scale power stations, making it a core component of efficient and durable photovoltaic systems.

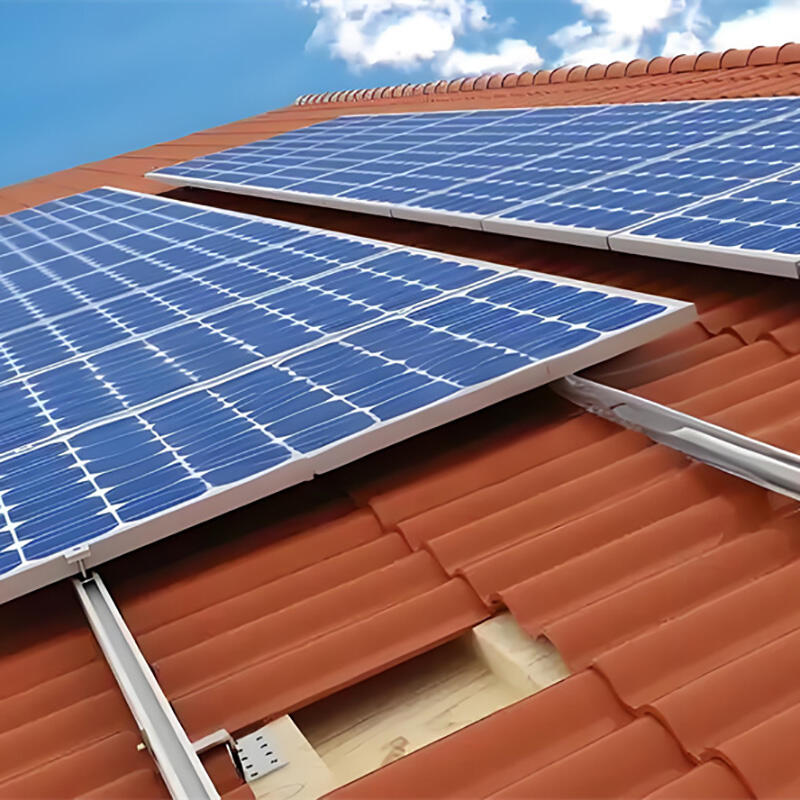

Solar photovoltaic mounting system
